Why Choose Imaging1.com

M9 LONG RANGE THERMAL IMAGING PTZ PAN TILT FLIR SECURITY SURVEILLANCE CAMERA

Experience unparalleled vision with the M9 PTZ Long Range thermal FLIR Imager. This cutting-edge device is equipped with F4 thermal imaging Zoom lenses that range from 250mm to 1750mm. In tandem, its HD Daytime CMOS BSI CCTV provides long-range IR corrected zoom lenses spanning from 25mm to 2600mm. To ensure versatility for various missions, the M9 platform can be augmented with a selection of additional sensors.


Industrial OGI (Optical Gas Imaging)

Unyielding in its resilience, the M9 boasts an IP68+ Submersible system, marking it as the epitome of ruggedness in long-range EOIR Day/Night vision imaging systems. But this device isn’t just about powerful optics. The integrated M9 systems and software suites are pivotal for oil & gas companies, enabling them to harness the power of computer vision for automating HSE, ESG, and operations. The M9's long-range OGI (Optical Gas Imaging) thermal camera systems incorporate advanced AI computer vision models, utilizing ultra-sensitive, long-lasting, high-performance certified OGI cameras on a steadfast pan-tilt mount. This ensures a relentless detection and quantification of VOC gas leaks on-site.

    About the m9 long range thermal imager

    The Science Behind Thermal Imaging

     Using state-of-the-art thermal infrared technology, our cameras detect heat instead of light. This technology, often known as FLIR or Forward Looking InfraRed, generates images based on temperature differences, capturing details even in complete darkness. SPI employs the utmost quality SD and HD ultra extreme long-range systems, crafted for military, security, and monitoring applications.

    Optical Gas Imaging (OGI) Technology

    Producers across various US locations trust the M9 for its continuous VOC gas leak detection and quantification system. This system is a linchpin for operators to effortlessly adhere to state, federal, global (OGMP 2.0), and ESG regulations. Crucial telemetry data—including location, date, weather, duration, size, and equipment—along with video footage of leaks, is captured in real-time. This invaluable data is then dispatched to a cloud-based user interface and seamlessly integrated into our client’s SCADA systems, ensuring operational efficiency and compliance.

    MultiSensor Systems: The SPI Advantage

     Our SPI family of gyro-stabilized military-grade MultiSensor PTZ (Pan Tilt Zoom) systems harmoniously integrate long-range mid-wave (MWIR) and long-wave (LWIR) high-definition thermal imaging M series cameras. These come packed with daylight sensors, Laser Range Finders, GPS, SWIR, Color Night Vision, and more, ensuring the most demanding needs are met without compromise.

    Customization & Global Presence

     SPI specializes in tailoring long-range PTZ thermal imaging multi-sensor platforms to fit unique requirements. Deployed in key global locations, our robust systems guarantee uninterrupted 24/7/365 performance. Trust in SPI's legacy of offering the sturdiest, most reliable systems in the world.

    M9's Technical Proficiency

     With spectral bands ranging between 8-12μm (LWIR) and 3-5μm (MWIR), the M9 showcases a myriad of advanced features:

    • Compatibility with most video and control units
    • Dynamic scene and weather mitigation
    • Superior range performance
    • 4th Generation Thermal FLIR Technology
    • High-definition HD Thermal IR camera integration

    About Imaging1.com

    M9's Ultra Long Range Capabilities

    A Testament to Durability & Performance

    A Testament to Durability & Performance

    The M9 is a masterclass in detection. Integrated with lenses ranging from 100mm to 1300mm, it promises uninterrupted extended performance with detection ranges up to 50 kilometers. Features like Radar Ready for Slew To Cue Integration, Long Range Eye Safe Laser Range Finder, and Global Positioning System GPS, elevate its surveillance capabilities.

    A Testament to Durability & Performance

    A Testament to Durability & Performance

    A Testament to Durability & Performance

    The M9 is more than just a camera; it's a promise of reliability. Designed to withstand the harshest environments, its weapon-grade PTZ pan tilt zoom turret ensures years of trouble-free operation. Whether it's snow, desert heat, or tropical humidity, the M9's 100% duty cycle assures flawless performance.

    Precision & Control

    A Testament to Durability & Performance

    Precision & Control

    From its high-resolution sensors to its long-range MWIR cooled thermal EOIR imaging capabilities, the M9 is built for precision. Features like ultra-slow or lightning-fast pan/tilt movements, anti-fog/haze/clutter technology, and double/4-axis gyro stabilization are testaments to its superior engineering.

    Call Us To Learn More

    Support and reliability

    Comprehensive Support & Integration

     From the initial application to installation and training, SPI provides full support. With its plug-n-play setup, the M9 can be integrated into existing networks seamlessly. Sensor fusion, image blending, and advanced auto imaging modes further enhance its capabilities, making it the top choice for security professionals globally.

    M9's Legacy & Reliability

     The M9 isn't just a camera; it's a legacy of unmatched performance. From its battlefield-proven technology to its military-grade coolers, every aspect of the M9 is designed for longevity and reliability. Whether it's for border patrol, coastline protection, or general security, the M9 remains unmatched in its class.

    Customization and add-ons


    PACKAGE INCLUDES



    • M9 Ultra Long Range PTZ EO/IR Imaging System
    • MilSpec IP68, The most rugged and reliable long range system available anywhere.
    • Cabling and Power
    • Gyro Stabilization / Ranger Finder (optional)
    • Long-Range Illuminator (optional)
    • Operators Manual
    • C2 Command and control station / Monitor)

    SBE795 AI Innovative Panel

     Experience effortless camera control with the SBE795 AI Innovative panel, featuring a robust touchscreen, integrated 6-dimensional joystick, and HD resolution screen for comprehensive camera monitoring and control.

    Alternative Control Options

    Choose from a variety of control options including a 4D joystick Controller with 5”, 7, or 9” LCD, and monitors up to 50” for extensive viewing. The multi-axis PTZ integrated keyboard offers both local and remote control, supported by IP and Ethernet RJ45 c2 connectivity, ensuring flexible and responsive camera operation

    Artificial Intelligence and machine learning in the m9

    Target Detection

    Automatic Tracking

    Automatic Tracking


    The M9 PTZ FLIR Camera series showcases a multitude of AI capabilities including object detection alarm with 255 threshold levels, target size recognition, and hot spot tracking. It supports intelligent analysis for intrusion, boundary crossing, entry/exit area, motion, loitering, people gathering, fast moving, target tracking, items left behind, items removed, people/vehicle target, and face detection.

    Automatic Tracking

    Automatic Tracking

    Automatic Tracking

    Automatic tracking is enabled for single/multi-scene and panoramic tracking, alongside alarm linkage tracking. Intelligent information fusion with 512 AR, and image fusion with 18 dual light fusion modes and picture-in-picture are integrated.

    Intelligent Alarms

    Automatic Tracking

    Intelligent Alarms

    Alarm management ensures alarm capture and upload for enhanced surveillance efficiency.

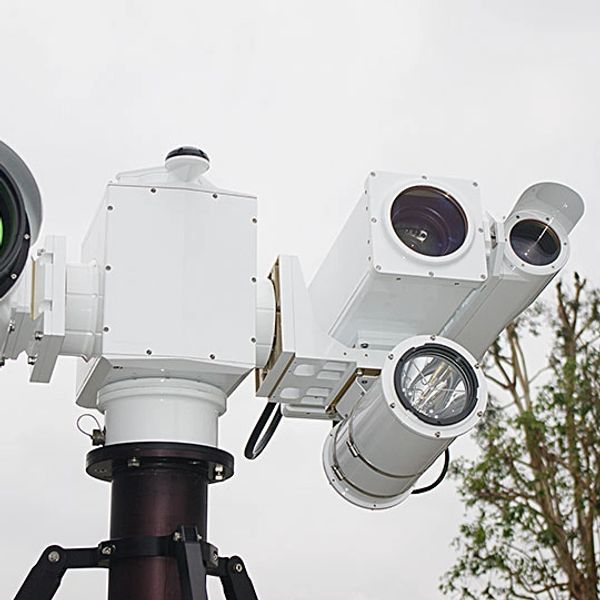

    Pictured is the M9 Long Range Thermal PTZ with x99 radar attachment

    x-99 slew to cue anti uav radar

    Border Security With Slew-To-Cue

    PTZ Thermal Imaging FLIR cameras, tailored for border security, can seamlessly integrate with radars and other sensors in a "slew-to-cue" setup, enabling real-time detection, recognition, and identification of threats. SPI's thermal imaging systems offer a comprehensive solution, adaptable to various mounting locations. Additionally, SPI can integrate the slew-to-cue x99 radar, offering benefits like rapid setup, user-friendly operation, and resilience to severe weather. This radar, with its lightweight design and vast detection range, complements the PTZ cameras by providing an enhanced surveillance cover, ensuring round-the-clock security across all terrains and weather conditions.

    Learn More

     "Slew-to-cue" is a term used in surveillance and defense sectors, referring to the automation process where a sensor or camera system (e.g., PTZ Thermal Imaging FLIR camera) automatically redirects its focus (slews) to a specified coordinate or target (cue) provided by another sensor or detection system (e.g., radar). This coordination enables quicker response and assessment of potential threats, enhancing the overall efficiency and effectiveness of a surveillance or security system.

    Find out more

    Specifications

    Pan/Tilt Mechanical

    • Pan (AZIMUTH): 360° Continuous Pan Rotation
    • Tilt (ELEVATION): 180° + 90° Full Tilt Angle
    • Positioner Speed: +.0001° /sec to 180° /sec in Pan and Tilt axis
    • Positioner Accel.: 200° /sec^2 in Pan and Tilt axis
    • Position Control: Direct Drive closed loop servo
    • Encoder Resolution: 19 bit (524,288 counts/360°)
    • Encoder Type: Absolute electrical- 19 bit absolute encoders with no hysteresis
    • Position Accuracy: 0.0006°
    • Hardware Stabilization: <80 micro radians per axis
    • System Stabilization: 4-axis/4 layer stabilization E/M

    Visual Camera Payload

    • Camera: CMOS 1/1.9″ 1920 x 1080 SENSOR Hardened wiring harness and staked connectors to military standards
    • Output Resolution: 1920 x 1080 pixels (through entire system)
    • S/N Ratio: >58dB
    • MAX Sensitivity Color: 0.0003 LX (F1.2)
    • MAX Sensitivity B/W: 0.00002 LX (F1.2)
    • Image Correction: Auto white balance, back light control, adaptive noise reduction, adaptive fog reduction, Image enhancement, NIR 1100nm visibility, Auto IRIS, Turbulent Atmosphere Compensation (TAC tm)
    • Optical Lens Focal Length: 2,0000 mm focal length with bore sight stability to better than 2% over entire zoom range
    • Fog/Haze Filter: Atmospheric penetrating Bi Linear Fog/Haze mitigation routine for Long Range Disturbance Attenuation (LRDA)

    System Interface

    Laser Range Finder

    Laser Range Finder

    • I/O Connection: Must have a single hermetically sealed MIL-38999 series connector for system power, control interface, and video output
    • Protocol: Expanded Pelco D
    • Control Interface: Ethernet
    • Video Output: H.264 encoded output of both SD and HD feeds. TRU HD video signal output
    • Radar Integration: Slew to cues provided by the radar system of choice
    • Software: Integrated with customer’s software

    Laser Range Finder

    Laser Range Finder

    Laser Range Finder

    • Wavelength: 1.5 microns
    • Eyesafe: Eye safe at the aperture
    • Range: 22km+
    • GPS: Internal with position displayed on video overlay
    • DMC: Internal with angle displayed on video overlay

    Environmental

    Laser Range Finder

    Thermal Imager

    • Operational Temp Range: -40°C to + 70°C
    • Storage Temp Range: -48°C to + 85°C
    • Size: In accordance with the ICD
    • Weight: In accordance with the ICD
    • Salt Fog, Solar Loading, Blowing Sand/Dust, Blowing Rain, Vibration, Optical Seal: Mil-std-810

    Thermal Imager

    Thermal Imager

    Thermal Imager



    • Sensor Type: MWIR InSb LATTICE MESH
    • Sensor Resolution: 640 x 512 PIXELS, HD 1280x1024 10um available
    • Spectral Range: 3.6 to 5.0 μm w/CO2 notch filter for atmospheric mitigation

    Thermal Imager

    Lifespan ROI

    • Focal Length: 200mm to 1200mm hardened Athermalized continuous optical zoom F/4
    • EZoom: 4x interpolated electronic zoom
    • Detection Range: 51km+
    • Focus: Optical Auto Focus UFA TM (UltraFast Autofocus) 12bit registered
    • Calibration: Operator guided self-calibration via 3- or 5-point Non-Uniformity Correction (NUC)
    • Stabilization: Internal electro-optical stabilization
    • Image Processing: LACE Local Area Contrast Enhancement, (LAP Local Area Processing) detail enhancement algorithm, Edge detail enhancement, Adaptive temporal noise reduction, Scene based NUC, Atmospheric Turbulence Mitigation, threshold based averaging, local area processing

    Lifespan ROI

    Thermal Imager

    Lifespan ROI

    • Obsolescence: Zero system level obsolescence. Must have the ability to integrate new sensor technology as it becomes available. New sensors and payloads must be field installed and FPGA code updated over ETHERNET/LAN for zero downtime upgrades
    • Consumables: Must have NO wear components. No scheduled mechanical drive component replacement
    • MTBF: >40,000 hours
    • System Architecture: FPGA based sensor agnostic system architecture. Firmware, OSD, and Operational Software can be updated over LAN/ETHERNET to upgrade capabilities
    • Downtime: Zero downtime goal. Sensors payloads must be hot swappable and system will operate with any configuration of sensors attached. New sensors can be integrated and firmware updated remotely via network.

    Video

    Extended-range MWIR cooled thermal infrared FLIR imaging system

    Frequently Asked Questions

    Please reach us at info@imaging1.com if you cannot find an answer to your question.

     OGI, or Optical Gas Imaging, allows for visualization of gas emissions through specialized thermal imaging cameras, providing a crucial tool for monitoring and detecting gas leaks in real-time.


    Image stabilization counteracts camera shake to maintain clear imagery. On the other hand, gyro stabilization uses gyroscope sensors to maintain a steady orientation, especially during movement, providing a stable platform for the camera. While both aim at reducing blurriness and maintaining image clarity, gyro stabilization is more advanced and effective in counteracting movements in three dimensions, making it highly suitable for aerial or marine surveillance scenarios.


    The M9 Long Range Thermal Camera is a COTS (Commercial Off-The-Shelf) pan-tilt thermal imaging system manufactured by SPI CORP. Standard models are generally in stock and ready for immediate shipment. Custom and semi-custom configurations are a specialty of SPI. By leveraging our M9 COTS solutions, we can custom tailor a system to your exact needs. Anything is possible with the M9 Long Range Thermal Camera system. Call a specialist today to discuss your unique application. From mild to wild, we can get the job done.


     Yes, the PTZ (Pan-Tilt-Zoom) feature allows for continuous 360° rotation, enabling comprehensive area surveillance without any blind spots.


     The camera offers various imaging modes including Black Hot, White Hot, Sepia, Iron, Isotherm, Panoramic Overlay, Side by Side, PIP (Picture in Picture), and Enhanced EOIR with 10 color palettes like Rainbow and Red Hot, providing versatile visualization options for different scenarios.
